ImplicitSurface is a class to build 3D implicit surfaces. More...

#include <ImplicitSurface.h>

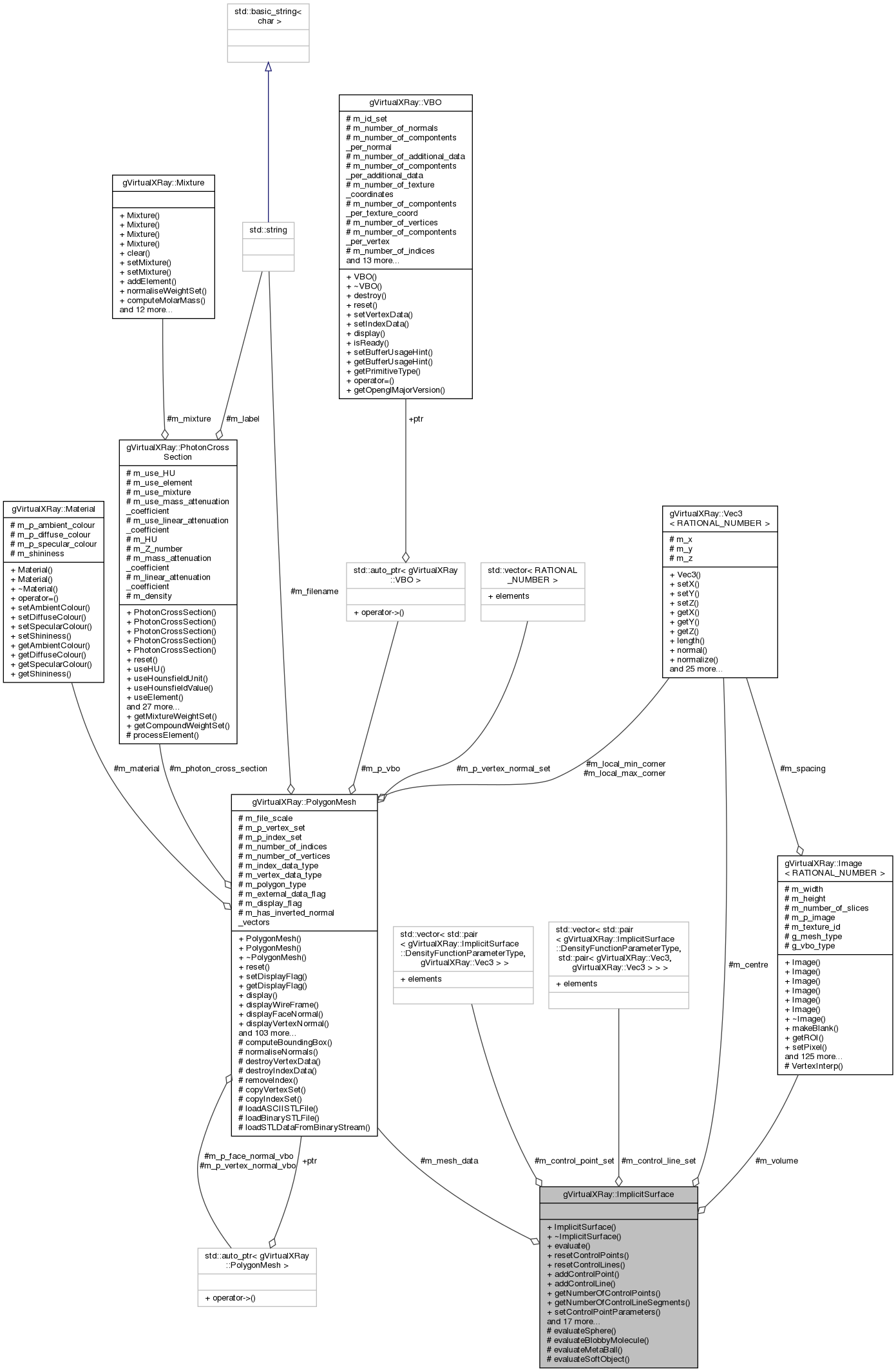

Collaboration diagram for gVirtualXRay::ImplicitSurface:

Data Structures
class	DensityFunctionParameterType
	Type of density function parameter. More...

Public Types
enum	DensityFunctionType { SPHERE, BLOBBY_MOLECULE, META_BALL, SOFT_OBJECT }
	Type of density function. More...

Public Member Functions
	ImplicitSurface ()
	Default constructor. More...

	~ImplicitSurface ()
	Destructor. More...

RATIONAL_NUMBER	evaluate (RATIONAL_NUMBER r, const DensityFunctionParameterType &aParameter) const
	Evaluate the density function for the distance r. More...

void	resetControlPoints ()
	Remove all the control points. More...

void	resetControlLines ()
	Remove all the control lines. More...

void	addControlPoint (const DensityFunctionParameterType &aParameter, const VEC3 &aControlPoint)
	Add a control point. More...

void	addControlLine (const DensityFunctionParameterType &aParameter, const VEC3 &aControlPoint1, const VEC3 &aControlPoint2)
	Add a control line. More...

unsigned int	getNumberOfControlPoints () const
	Accessor on the number of control points. More...

unsigned int	getNumberOfControlLineSegments () const
	Accessor on the number of control line segments. More...

void	setControlPointParameters (unsigned int aPointID, DensityFunctionType aDentityFunction, float aParameter1, float aParameter2=0.0)

void	setControlLineSegmentParameters (unsigned int aLineSegmentID, DensityFunctionType aDentityFunction, float aParameter1, float aParameter2=0.0)

const VEC3 &	getControlPoint (unsigned int anIndex) const
	Accessor on a given control point. More...

VEC3 &	getControlPoint (unsigned int anIndex)
	Accessor on a given control point. More...

const std::pair< VEC3, VEC3 > &	getControlLine (unsigned int anIndex) const
	Accessor on a given control line. More...

std::pair< VEC3, VEC3 > &	getControlLine (unsigned int anIndex)
	Accessor on a given control line. More...

void	voxelise (const Vec3ui &aNumberOfVoxels, const VEC3 &aCenter, const VEC3 &aVoxelSize, unsigned char aVerboseLevel=0)
	Accessor on a given control line. More...

void	voxelize (const Vec3ui &aNumberOfVoxels, const VEC3 &aCenter, const VEC3 &aVoxelSize, unsigned char aVerboseLevel=0)
	Accessor on a given control line. More...

void	writeVoxelData (const char *aFileName) const
	Write the current voxel data into a file. More...

void	writeVoxelData (const std::string &aFileName) const
	Write the current voxel data into a file. More...

void	writePolygonMesh (const char *aFileName)
	Write the polygon data. More...

void	writePolygonMesh (const std::string &aFileName)
	Write the polygon data. More...

void	extractIsoSurface (const RATIONAL_NUMBER &aThreshold=0, unsigned char aVerboseLevel=0)

void	extractIsoSurface (const RATIONAL_NUMBER &aLowerThreshold, const RATIONAL_NUMBER &anUpperThreshold, unsigned char aVerboseLevel=0)

PolygonMesh &	getPolygonMesh ()
	Accessor on the polygon data. More...

const PolygonMesh &	getPolygonMesh () const
	Accessor on the polygon data. More...

const Image< RATIONAL_NUMBER > &	getVolume () const

Image< RATIONAL_NUMBER > &	getVolume ()

Protected Member Functions
RATIONAL_NUMBER	evaluateSphere (RATIONAL_NUMBER r) const

RATIONAL_NUMBER	evaluateBlobbyMolecule (RATIONAL_NUMBER r, RATIONAL_NUMBER a, RATIONAL_NUMBER b) const

RATIONAL_NUMBER	evaluateMetaBall (RATIONAL_NUMBER r, RATIONAL_NUMBER a, RATIONAL_NUMBER b) const

RATIONAL_NUMBER	evaluateSoftObject (RATIONAL_NUMBER r, RATIONAL_NUMBER a, RATIONAL_NUMBER b) const

Protected Attributes
Image< RATIONAL_NUMBER >	m_volume

PolygonMesh	m_mesh_data

VEC3	m_centre

std::vector< std::pair< DensityFunctionParameterType, VEC3 > >	m_control_point_set

std::vector< std::pair< DensityFunctionParameterType, std::pair< VEC3, VEC3 > > >	m_control_line_set

Detailed Description

ImplicitSurface is a class to build 3D implicit surfaces.

Definition at line 101 of file ImplicitSurface.h.

Member Enumeration Documentation

◆ DensityFunctionType

enum gVirtualXRay::ImplicitSurface::DensityFunctionType

Type of density function.

Enumerator
SPHERE	Sphere.
BLOBBY_MOLECULE	Blobby molecule, first created by Jim Blinn and modelled after electron density fields
META_BALL	Meta balls.
SOFT_OBJECT	Soft Objects, first created by the Wyvill brothers

Definition at line 109 of file ImplicitSurface.h.

Constructor & Destructor Documentation

◆ ImplicitSurface()

gVirtualXRay::ImplicitSurface::ImplicitSurface ( )

Default constructor.

◆ ~ImplicitSurface()

gVirtualXRay::ImplicitSurface::~ImplicitSurface ( )

Destructor.

Member Function Documentation

◆ addControlLine()

void gVirtualXRay::ImplicitSurface::addControlLine	(	const DensityFunctionParameterType &	aParameter,
		const VEC3 &	aControlPoint1,
		const VEC3 &	aControlPoint2
	)

inline

Add a control line.

Parameters

aParameter	the parameter of the density function
aControlPoint1	the first point that defines the line segment
aControlPoint2	the second point that defines the line segment

Definition at line 136 of file ImplicitSurface.inl.

◆ addControlPoint()

void gVirtualXRay::ImplicitSurface::addControlPoint	(	const DensityFunctionParameterType &	aParameter,
		const VEC3 &	aControlPoint
	)

inline

Add a control point.

Parameters

aParameter	the parameter of the density function
aControlPoint	the control point to add

Definition at line 127 of file ImplicitSurface.inl.

◆ evaluate()

RATIONAL_NUMBER gVirtualXRay::ImplicitSurface::evaluate	(	RATIONAL_NUMBER	r,
		const DensityFunctionParameterType &	aParameter
	)		const

inline

Evaluate the density function for the distance r.

Parameters

r	the distance
aParameter	the parameter of the density function

Returns: the density

Definition at line 86 of file ImplicitSurface.inl.

◆ evaluateBlobbyMolecule()

RATIONAL_NUMBER gVirtualXRay::ImplicitSurface::evaluateBlobbyMolecule	(	RATIONAL_NUMBER	r,
		RATIONAL_NUMBER	a,
		RATIONAL_NUMBER	b
	)		const

inlineprotected

Definition at line 341 of file ImplicitSurface.inl.

◆ evaluateMetaBall()

RATIONAL_NUMBER gVirtualXRay::ImplicitSurface::evaluateMetaBall	(	RATIONAL_NUMBER	r,
		RATIONAL_NUMBER	a,
		RATIONAL_NUMBER	b
	)		const

inlineprotected

Definition at line 358 of file ImplicitSurface.inl.

◆ evaluateSoftObject()

RATIONAL_NUMBER gVirtualXRay::ImplicitSurface::evaluateSoftObject	(	RATIONAL_NUMBER	r,
		RATIONAL_NUMBER	a,
		RATIONAL_NUMBER	b
	)		const

inlineprotected

Definition at line 379 of file ImplicitSurface.inl.

◆ evaluateSphere()

RATIONAL_NUMBER gVirtualXRay::ImplicitSurface::evaluateSphere ( RATIONAL_NUMBER r ) const

inlineprotected

Definition at line 326 of file ImplicitSurface.inl.

◆ extractIsoSurface() [1/2]

void gVirtualXRay::ImplicitSurface::extractIsoSurface	(	const RATIONAL_NUMBER &	aThreshold = `0`,
		unsigned char	aVerboseLevel = `0`
	)

Extract the surface from the voxel data corresponding to a given iso-value.

Parameters

aThreshold	the threshold value
aVerboseLevel	the level of statements in the standard output. For no output, use 0 (default value: 0)

◆ extractIsoSurface() [2/2]

void gVirtualXRay::ImplicitSurface::extractIsoSurface	(	const RATIONAL_NUMBER &	aLowerThreshold,
		const RATIONAL_NUMBER &	anUpperThreshold,
		unsigned char	aVerboseLevel = `0`
	)

Extract the surface from the voxel data corresponding to a given iso-value.

Parameters

aLowerThreshold	the lower threshold value
anUpperThreshold	the upper threshold value
aVerboseLevel	the level of statements in the standard output. For no output, use 0 (default value: 0)

◆ getControlLine() [1/2]

const std::pair< VEC3, VEC3 > & gVirtualXRay::ImplicitSurface::getControlLine ( unsigned int anIndex ) const

inline

Accessor on a given control line.

Parameters

anIndex the index of the control point

Returns: the corresponding control line segment

Definition at line 224 of file ImplicitSurface.inl.

◆ getControlLine() [2/2]

std::pair< VEC3, VEC3 > & gVirtualXRay::ImplicitSurface::getControlLine ( unsigned int anIndex )

inline

Accessor on a given control line.

Parameters

anIndex the index of the control point

Returns: the corresponding control line segment

Definition at line 237 of file ImplicitSurface.inl.

◆ getControlPoint() [1/2]

const VEC3 & gVirtualXRay::ImplicitSurface::getControlPoint ( unsigned int anIndex ) const

inline

Accessor on a given control point.

Parameters

anIndex the index of the control point

Returns: the corresponding control point

Definition at line 198 of file ImplicitSurface.inl.

◆ getControlPoint() [2/2]

VEC3 & gVirtualXRay::ImplicitSurface::getControlPoint ( unsigned int anIndex )

inline

Accessor on a given control point.

Parameters

anIndex the index of the control point

Returns: the corresponding control point

Definition at line 211 of file ImplicitSurface.inl.

◆ getNumberOfControlLineSegments()

unsigned int gVirtualXRay::ImplicitSurface::getNumberOfControlLineSegments ( ) const

inline

Accessor on the number of control line segments.

Returns: the number of control line segments

Definition at line 154 of file ImplicitSurface.inl.

◆ getNumberOfControlPoints()

unsigned int gVirtualXRay::ImplicitSurface::getNumberOfControlPoints ( ) const

inline

Accessor on the number of control points.

Returns: the number of control points

Definition at line 146 of file ImplicitSurface.inl.

◆ getPolygonMesh() [1/2]

PolygonMesh & gVirtualXRay::ImplicitSurface::getPolygonMesh ( )

inline

Accessor on the polygon data.

Returns: the polygon data

Definition at line 294 of file ImplicitSurface.inl.

◆ getPolygonMesh() [2/2]

const PolygonMesh & gVirtualXRay::ImplicitSurface::getPolygonMesh ( ) const

inline

Accessor on the polygon data.

Returns: the polygon data

Definition at line 302 of file ImplicitSurface.inl.

◆ getVolume() [1/2]

const Image< RATIONAL_NUMBER > & gVirtualXRay::ImplicitSurface::getVolume ( ) const

inline

Definition at line 310 of file ImplicitSurface.inl.

◆ getVolume() [2/2]

Image< RATIONAL_NUMBER > & gVirtualXRay::ImplicitSurface::getVolume ( )

inline

Definition at line 318 of file ImplicitSurface.inl.

◆ resetControlLines()

void gVirtualXRay::ImplicitSurface::resetControlLines ( )

inline

Remove all the control lines.

Definition at line 119 of file ImplicitSurface.inl.

◆ resetControlPoints()

void gVirtualXRay::ImplicitSurface::resetControlPoints ( )

inline

Remove all the control points.

Definition at line 111 of file ImplicitSurface.inl.

◆ setControlLineSegmentParameters()

void gVirtualXRay::ImplicitSurface::setControlLineSegmentParameters	(	unsigned int	aLineSegmentID,
		DensityFunctionType	aDentityFunction,
		float	aParameter1,
		float	aParameter2 = `0.0`
	)

inline

Definition at line 180 of file ImplicitSurface.inl.

◆ setControlPointParameters()

void gVirtualXRay::ImplicitSurface::setControlPointParameters	(	unsigned int	aPointID,
		DensityFunctionType	aDentityFunction,
		float	aParameter1,
		float	aParameter2 = `0.0`
	)

inline

Definition at line 162 of file ImplicitSurface.inl.

◆ voxelise()

void gVirtualXRay::ImplicitSurface::voxelise	(	const Vec3ui &	aNumberOfVoxels,
		const VEC3 &	aCenter,
		const VEC3 &	aVoxelSize,
		unsigned char	aVerboseLevel = `0`
	)

Accessor on a given control line.

Parameters

aNumberOfVoxels	the number of voxels
aCenter	the 3D position of the centre of the dataset
aVoxelSize	the size of voxels
aVerboseLevel	the level of statements in the standard output. For no output, use 0 (default value: 0)

◆ voxelize()

void gVirtualXRay::ImplicitSurface::voxelize	(	const Vec3ui &	aNumberOfVoxels,
		const VEC3 &	aCenter,
		const VEC3 &	aVoxelSize,
		unsigned char	aVerboseLevel = `0`
	)

inline

Accessor on a given control line.

Parameters

aNumberOfVoxels	the number of voxels
aCenter	the 3D position of the centre of the dataset
aVoxelSize	the size of voxels
aVerboseLevel	the level of statements in the standard output. For no output, use 0 (default value: 0)

Definition at line 250 of file ImplicitSurface.inl.

◆ writePolygonMesh() [1/2]

void gVirtualXRay::ImplicitSurface::writePolygonMesh ( const char * aFileName )

Write the polygon data.

Parameters

aFileName the name of the file where to save the polygon data

◆ writePolygonMesh() [2/2]

void gVirtualXRay::ImplicitSurface::writePolygonMesh ( const std::string & aFileName )

inline

Write the polygon data.

Parameters

aFileName the name of the file where to save the polygon data

Definition at line 269 of file ImplicitSurface.inl.

◆ writeVoxelData() [1/2]

void gVirtualXRay::ImplicitSurface::writeVoxelData ( const char * aFileName ) const

Write the current voxel data into a file.

Parameters

aFileName the name of the file where to save the voxel data

◆ writeVoxelData() [2/2]

void gVirtualXRay::ImplicitSurface::writeVoxelData ( const std::string & aFileName ) const

inline

Write the current voxel data into a file.

Parameters

aFileName the name of the file where to save the voxel data

Definition at line 261 of file ImplicitSurface.inl.

Field Documentation

◆ m_centre

VEC3 gVirtualXRay::ImplicitSurface::m_centre

protected

Definition at line 440 of file ImplicitSurface.h.

◆ m_control_line_set

std::vector<std::pair<DensityFunctionParameterType, std::pair<VEC3, VEC3> > > gVirtualXRay::ImplicitSurface::m_control_line_set

protected

Definition at line 448 of file ImplicitSurface.h.

◆ m_control_point_set

std::vector<std::pair<DensityFunctionParameterType, VEC3> > gVirtualXRay::ImplicitSurface::m_control_point_set

protected

Definition at line 444 of file ImplicitSurface.h.

◆ m_mesh_data

PolygonMesh gVirtualXRay::ImplicitSurface::m_mesh_data

protected

Definition at line 437 of file ImplicitSurface.h.

◆ m_volume

Image<RATIONAL_NUMBER> gVirtualXRay::ImplicitSurface::m_volume

protected

Definition at line 434 of file ImplicitSurface.h.

The documentation for this class was generated from the following files:

/home/fpvidal/PROGRAMMING/RELEASE/gVirtualXray-2.0.10-Source/gvxr/include/gVirtualXRay/ImplicitSurface.h
/home/fpvidal/PROGRAMMING/RELEASE/gVirtualXray-2.0.10-Source/gvxr/include/gVirtualXRay/ImplicitSurface.inl
