Matrix4x4 is a template class to handle a 4 by 4 matrix. More...

#include <Matrix4x4.h>

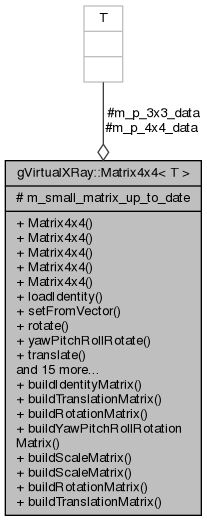

Collaboration diagram for gVirtualXRay::Matrix4x4< T >:

Public Member Functions
	Matrix4x4 (const T &a1=1.0f, const T &a2=0.0f, const T &a3=0.0f, const T &a4=0.0f, const T &a5=0.0f, const T &a6=1.0f, const T &a7=0.0f, const T &a8=0.0f, const T &a9=0.0f, const T &a10=0.0f, const T &a11=1.0f, const T &a12=0.0f, const T &a13=0.0f, const T &a14=0.0f, const T &a15=0.0f, const T &a16=1.0f)
	Default Constructor (create an identity matrix). More...

	Matrix4x4 (const Matrix4x4 &aMatrix)
	Copy Constructor. More...

	Matrix4x4 (const Matrix4x4 *apMatrix)
	Copy Constructor. More...

	Matrix4x4 (const T *apMatrix)
	Copy Constructor. More...

	Matrix4x4 (const std::vector< double > &apMatrix)
	Copy Constructor. More...

void	loadIdentity ()
	Load identity matrix. More...

void	setFromVector (const std::vector< double > &apMatrix)
	Load the matrix. More...

void	rotate (const double anAngle, const Vec3< T > &aVector)
	Multiply the current matrix by a rotation matrix. More...

void	yawPitchRollRotate (double yaw, double pitch, double roll)
	Multiply the current matrix by a yaw, pitch, roll rotation matrix. More...

void	translate (const Vec3< T > &aVector)
	Multiply the current matrix by a translation matrix. More...

void	translate (T x, T y, T z)
	Multiply the current matrix by a translation matrix. More...

void	scale (T x, T y, T z)
	Multiply the current matrix by a scaling matrix. More...

Matrix4x4	getTranspose () const
	Get the transpose of the current matrix. More...

T	determinant () const
	Compute the determinant of the current matrix. More...

Matrix4x4	getInverse () const
	Get the inverse of the current matrix. More...

Matrix4x4 &	operator= (const Matrix4x4 &aMatrix)
	Copy operator. More...

const T *	get () const
	Accessor on the 4x4 matrix data. More...

const T *	get4x4 () const
	Accessor on the 4x4 matrix data. More...

const T *	get3x3 ()
	Accessor on the 3x3 matrix data. More...

std::vector< double >	getAsVector () const
	Accessor on the 4x4 matrix data. More...

Vec3< T >	operator* (const Vec3< T > &aVector) const
	Operator * to multiply the current matrix by a vector. More...

Matrix4x4	operator* (const Matrix4x4 &aMatrix) const
	Operator * to multiply the current matrix by another matrix. More...

Matrix4x4 &	operator*= (const Matrix4x4 &aMatrix)

void	print () const
	Print the matrix in the console. More...

void	print (std::ostream &anOutputStream) const
	Print the matrix in the console. More...

Static Public Member Functions
static Matrix4x4	buildIdentityMatrix ()
	Build an identity matrix. More...

static Matrix4x4	buildTranslationMatrix (const Vec3< T > &aVector)
	Build a tranlation matrix. More...

static Matrix4x4	buildRotationMatrix (T anAngle, T x, T y, T z)
	Build a rotation matrix. More...

static Matrix4x4	buildYawPitchRollRotationMatrix (T yaw, T pitch, T roll)
	Build a rotation matrix. More...

static Matrix4x4	buildScaleMatrix (const Vec3< T > &aVector)
	Build a scale matrix. More...

static Matrix4x4	buildScaleMatrix (T x, T y, T z)
	Build a scale matrix. More...

static Matrix4x4	buildRotationMatrix (T anAngle, const Vec3< T > &aVector)
	Build a rotation matrix. More...

static Matrix4x4	buildTranslationMatrix (T x, T y, T z)
	Build a rotation matrix. More...

Protected Attributes
T	m_p_4x4_data [4 *4]
	the matrix data More...

T	m_p_3x3_data [3 *3]
	the matrix data More...

bool	m_small_matrix_up_to_date

Detailed Description

template<typename T>
class gVirtualXRay::Matrix4x4< T >

Matrix4x4 is a template class to handle a 4 by 4 matrix.

Definition at line 89 of file Matrix4x4.h.

Constructor & Destructor Documentation

◆ Matrix4x4() [1/5]

template<typename T>

gVirtualXRay::Matrix4x4< T >::Matrix4x4	(	const T &	a1 = `1.0f`,
		const T &	a2 = `0.0f`,
		const T &	a3 = `0.0f`,
		const T &	a4 = `0.0f`,
		const T &	a5 = `0.0f`,
		const T &	a6 = `1.0f`,
		const T &	a7 = `0.0f`,
		const T &	a8 = `0.0f`,
		const T &	a9 = `0.0f`,
		const T &	a10 = `0.0f`,
		const T &	a11 = `1.0f`,
		const T &	a12 = `0.0f`,
		const T &	a13 = `0.0f`,
		const T &	a14 = `0.0f`,
		const T &	a15 = `0.0f`,
		const T &	a16 = `1.0f`
	)

Default Constructor (create an identity matrix).

Parameters

a1	the 1st element of the matrix
a2	the 2nd element of the matrix
a3	the 3rd element of the matrix
a4	the 4th element of the matrix
a5	the 5th element of the matrix
a6	the 6th element of the matrix
a7	the 7th element of the matrix
a8	the 8th element of the matrix
a9	the 9th element of the matrix
a10	the 10th element of the matrix
a11	the 11th element of the matrix
a12	the 12th element of the matrix
a13	the 13th element of the matrix
a14	the 14th element of the matrix
a15	the 15th element of the matrix
a16	the 16th element of the matrix

Definition at line 87 of file Matrix4x4.inl.

◆ Matrix4x4() [2/5]

template<typename T>

gVirtualXRay::Matrix4x4< T >::Matrix4x4 ( const Matrix4x4< T > & aMatrix )

Copy Constructor.

Parameters

aMatrix the matrix to copy

Definition at line 115 of file Matrix4x4.inl.

◆ Matrix4x4() [3/5]

template<typename T>

gVirtualXRay::Matrix4x4< T >::Matrix4x4 ( const Matrix4x4< T > * apMatrix )

Copy Constructor.

Parameters

apMatrix the matrix to copy

◆ Matrix4x4() [4/5]

template<typename T>

gVirtualXRay::Matrix4x4< T >::Matrix4x4 ( const T * apMatrix )

Copy Constructor.

Parameters

apMatrix the matrix to copy

Definition at line 125 of file Matrix4x4.inl.

◆ Matrix4x4() [5/5]

template<typename T>

gVirtualXRay::Matrix4x4< T >::Matrix4x4 ( const std::vector< double > & apMatrix )

Copy Constructor.

Parameters

apMatrix the matrix to copy

Definition at line 135 of file Matrix4x4.inl.

Member Function Documentation

◆ buildIdentityMatrix()

template<typename T >

Matrix4x4< T > gVirtualXRay::Matrix4x4< T >::buildIdentityMatrix ( )

static

Build an identity matrix.

Returns: the identity matrix

Definition at line 237 of file Matrix4x4.inl.

◆ buildRotationMatrix() [1/2]

template<typename T>

Matrix4x4< T > gVirtualXRay::Matrix4x4< T >::buildRotationMatrix	(	T	anAngle,
		T	x,
		T	y,
		T	z
	)

static

Build a rotation matrix.

Parameters

anAngle	the angle of rotation in degrees
x	the x-component of the axis of rotation
y	the y-component of the axis of rotation
z	the z-component of the axis of rotation

Returns: the corresponding rotation matrix

Definition at line 307 of file Matrix4x4.inl.

◆ buildRotationMatrix() [2/2]

template<typename T>

Matrix4x4< T > gVirtualXRay::Matrix4x4< T >::buildRotationMatrix	(	T	anAngle,
		const Vec3< T > &	aVector
	)

static

Build a rotation matrix.

Parameters

anAngle	the angle of rotation in degrees
aVector	the axis of rotation

Returns: the corresponding translation matrix

Definition at line 298 of file Matrix4x4.inl.

◆ buildScaleMatrix() [1/2]

template<typename T>

Matrix4x4< T > gVirtualXRay::Matrix4x4< T >::buildScaleMatrix ( const Vec3< T > & aVector )

static

Build a scale matrix.

Parameters

aVector the scale vector

Returns: the corresponding scale matrix

Definition at line 268 of file Matrix4x4.inl.

◆ buildScaleMatrix() [2/2]

template<typename T>

Matrix4x4< T > gVirtualXRay::Matrix4x4< T >::buildScaleMatrix	(	T	x,
		T	y,
		T	z
	)

static

Build a scale matrix.

Parameters

x	the x-component of the axis of scale
y	the y-component of the axis of scale
z	the z-component of the axis of scale

Returns: the corresponding scale matrix

Definition at line 276 of file Matrix4x4.inl.

◆ buildTranslationMatrix() [1/2]

template<typename T>

Matrix4x4< T > gVirtualXRay::Matrix4x4< T >::buildTranslationMatrix ( const Vec3< T > & aVector )

static

Build a tranlation matrix.

Parameters

aVector the translation vector

Returns: the corresponding translation matrix

Definition at line 249 of file Matrix4x4.inl.

◆ buildTranslationMatrix() [2/2]

template<typename T>

Matrix4x4< T > gVirtualXRay::Matrix4x4< T >::buildTranslationMatrix	(	T	x,
		T	y,
		T	z
	)

static

Build a rotation matrix.

Parameters

x	the x-component of the translation vector
y	the y-component of the translation vector
z	the z-component of the translation vector

Returns: the corresponding translation matrix

Definition at line 257 of file Matrix4x4.inl.

◆ buildYawPitchRollRotationMatrix()

template<typename T>

Matrix4x4< T > gVirtualXRay::Matrix4x4< T >::buildYawPitchRollRotationMatrix	(	T	yaw,
		T	pitch,
		T	roll
	)

static

Build a rotation matrix.

Parameters

yaw	a counterclockwise rotation of yaw degrees about the z-axis
pitch	a counterclockwise rotation of yaw degrees about the y-axis
roll	a counterclockwise rotation of yaw degrees about the x-axis

Returns: the corresponding rotation matrix

Definition at line 356 of file Matrix4x4.inl.

◆ determinant()

template<typename T >

T gVirtualXRay::Matrix4x4< T >::determinant ( ) const

Compute the determinant of the current matrix.

Returns: the determinant

Definition at line 436 of file Matrix4x4.inl.

◆ get()

template<typename T >

const T * gVirtualXRay::Matrix4x4< T >::get ( ) const

Accessor on the 4x4 matrix data.

Returns: the matrix raw data

Definition at line 548 of file Matrix4x4.inl.

◆ get3x3()

template<typename T >

const T * gVirtualXRay::Matrix4x4< T >::get3x3 ( )

Accessor on the 3x3 matrix data.

Returns: the matrix raw data

Definition at line 564 of file Matrix4x4.inl.

◆ get4x4()

template<typename T >

const T * gVirtualXRay::Matrix4x4< T >::get4x4 ( ) const

Accessor on the 4x4 matrix data.

Returns: the matrix raw data

Definition at line 556 of file Matrix4x4.inl.

◆ getAsVector()

template<typename T >

std::vector< double > gVirtualXRay::Matrix4x4< T >::getAsVector ( ) const

Accessor on the 4x4 matrix data.

Returns: the matrix raw data

Definition at line 590 of file Matrix4x4.inl.

◆ getInverse()

template<typename T >

Matrix4x4< T > gVirtualXRay::Matrix4x4< T >::getInverse ( ) const

Get the inverse of the current matrix.

Returns: the inverse matrix

Definition at line 450 of file Matrix4x4.inl.

◆ getTranspose()

template<typename T >

Matrix4x4< T > gVirtualXRay::Matrix4x4< T >::getTranspose ( ) const

Get the transpose of the current matrix.

Returns: the transpose matrix

Definition at line 424 of file Matrix4x4.inl.

◆ loadIdentity()

template<typename T >

void gVirtualXRay::Matrix4x4< T >::loadIdentity ( )

Load identity matrix.

Definition at line 151 of file Matrix4x4.inl.

◆ operator*() [1/2]

template<typename T>

Vec3< T > gVirtualXRay::Matrix4x4< T >::operator* ( const Vec3< T > & aVector ) const

Operator * to multiply the current matrix by a vector.

Parameters

aVector the vector to transform

Returns: the transformed vector

Definition at line 493 of file Matrix4x4.inl.

◆ operator*() [2/2]

template<typename T>

Matrix4x4< T > gVirtualXRay::Matrix4x4< T >::operator* ( const Matrix4x4< T > & aMatrix ) const

Operator * to multiply the current matrix by another matrix.

Parameters

aMatrix the other matrix

Returns: the transformed matrix

Definition at line 506 of file Matrix4x4.inl.

◆ operator*=()

template<typename T >

Matrix4x4< T > & gVirtualXRay::Matrix4x4< T >::operator*= ( const Matrix4x4< T > & aMatrix )

Operator *= to multiply the current matrix by another matrix, and modify the current matrix.

Parameters

aMatrix the other matrix

Returns: the transformed matrix

Definition at line 536 of file Matrix4x4.inl.

◆ operator=()

template<typename T >

Matrix4x4< T > & gVirtualXRay::Matrix4x4< T >::operator= ( const Matrix4x4< T > & aMatrix )

Copy operator.

Parameters

aMatrix the matrix to copy

Returns: the copied matrix

Definition at line 481 of file Matrix4x4.inl.

◆ print() [1/2]

template<typename T >

void gVirtualXRay::Matrix4x4< T >::print ( ) const

Print the matrix in the console.

Definition at line 605 of file Matrix4x4.inl.

◆ print() [2/2]

template<typename T >

void gVirtualXRay::Matrix4x4< T >::print ( std::ostream & anOutputStream ) const

Print the matrix in the console.

Parameters

anOutputStream the stream in which the matrix will be printed

Definition at line 613 of file Matrix4x4.inl.

◆ rotate()

template<typename T>

void gVirtualXRay::Matrix4x4< T >::rotate	(	const double	anAngle,
		const Vec3< T > &	aVector
	)

Multiply the current matrix by a rotation matrix.

Parameters

anAngle	the angle of rotation in degrees
aVector	the axis of rotation

Definition at line 195 of file Matrix4x4.inl.

◆ scale()

template<typename T>

void gVirtualXRay::Matrix4x4< T >::scale	(	T	x,
		T	y,
		T	z
	)

Multiply the current matrix by a scaling matrix.

Parameters

x	the scaling factor along the X-axis
y	the scaling factor along the Y-axis
z	the scaling factor along the Z-axis

Definition at line 399 of file Matrix4x4.inl.

◆ setFromVector()

template<typename T >

void gVirtualXRay::Matrix4x4< T >::setFromVector ( const std::vector< double > & apMatrix )

Load the matrix.

Parameters

apMatrix the matrix to copy

Definition at line 179 of file Matrix4x4.inl.

◆ translate() [1/2]

template<typename T>

void gVirtualXRay::Matrix4x4< T >::translate ( const Vec3< T > & aVector )

Multiply the current matrix by a translation matrix.

Parameters

aVector the translation vector

Definition at line 217 of file Matrix4x4.inl.

◆ translate() [2/2]

template<typename T>

void gVirtualXRay::Matrix4x4< T >::translate	(	T	x,
		T	y,
		T	z
	)

Multiply the current matrix by a translation matrix.

Parameters

x	the x-component of the translation vector
y	the y-component of the translation vector
z	the z-component of the translation vector

Definition at line 227 of file Matrix4x4.inl.

◆ yawPitchRollRotate()

template<typename T >

void gVirtualXRay::Matrix4x4< T >::yawPitchRollRotate	(	double	yaw,
		double	pitch,
		double	roll
	)

Multiply the current matrix by a yaw, pitch, roll rotation matrix.

Parameters

yaw	a counterclockwise rotation of yaw degrees about the z-axis
pitch	a counterclockwise rotation of yaw degrees about the y-axis
roll	a counterclockwise rotation of yaw degrees about the x-axis

Definition at line 205 of file Matrix4x4.inl.

Field Documentation

◆ m_p_3x3_data

template<typename T>

T gVirtualXRay::Matrix4x4< T >::m_p_3x3_data[3 *3]

protected

the matrix data

Definition at line 468 of file Matrix4x4.h.

◆ m_p_4x4_data

template<typename T>

T gVirtualXRay::Matrix4x4< T >::m_p_4x4_data[4 *4]

protected

the matrix data

Definition at line 464 of file Matrix4x4.h.

◆ m_small_matrix_up_to_date

template<typename T>

bool gVirtualXRay::Matrix4x4< T >::m_small_matrix_up_to_date

protected

A flag to check if the 3x3 matrix is up-to-date. It is used for lazy evaluation.

Definition at line 473 of file Matrix4x4.h.

The documentation for this class was generated from the following files:

/home/fpvidal/PROGRAMMING/RELEASE/gVirtualXray-2.0.10-Source/gvxr/include/gVirtualXRay/Matrix4x4.h
/home/fpvidal/PROGRAMMING/RELEASE/gVirtualXray-2.0.10-Source/gvxr/include/gVirtualXRay/Matrix4x4.inl

Public Member Functions

Static Public Member Functions

Protected Attributes

Detailed Description

template<typename T> class gVirtualXRay::Matrix4x4< T >

Constructor & Destructor Documentation

◆ Matrix4x4() [1/5]

◆ Matrix4x4() [2/5]

◆ Matrix4x4() [3/5]

◆ Matrix4x4() [4/5]

◆ Matrix4x4() [5/5]

Member Function Documentation

◆ buildIdentityMatrix()

◆ buildRotationMatrix() [1/2]

◆ buildRotationMatrix() [2/2]

◆ buildScaleMatrix() [1/2]

◆ buildScaleMatrix() [2/2]

◆ buildTranslationMatrix() [1/2]

◆ buildTranslationMatrix() [2/2]

◆ buildYawPitchRollRotationMatrix()

◆ determinant()

◆ get()

◆ get3x3()

◆ get4x4()

◆ getAsVector()

◆ getInverse()

◆ getTranspose()

◆ loadIdentity()

◆ operator*() [1/2]

◆ operator*() [2/2]

◆ operator*=()

◆ operator=()

◆ print() [1/2]

◆ print() [2/2]

◆ rotate()

◆ scale()

◆ setFromVector()

◆ translate() [1/2]

◆ translate() [2/2]

◆ yawPitchRollRotate()

Field Documentation

◆ m_p_3x3_data

◆ m_p_4x4_data

◆ m_small_matrix_up_to_date

template<typename T>
class gVirtualXRay::Matrix4x4< T >
