Scintillator is a class to generate the energy response due to the scintillator of the X-Ray detector. More...

#include <Scintillator.h>

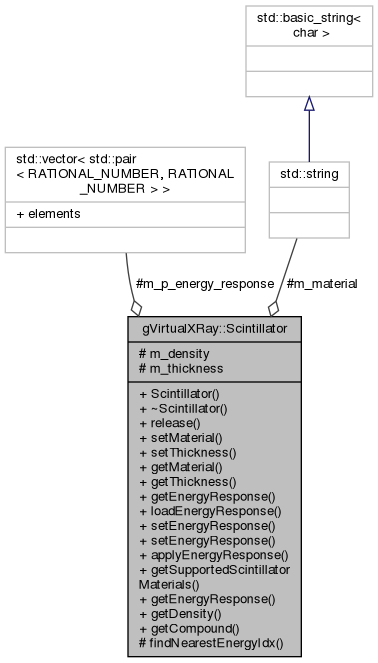

Collaboration diagram for gVirtualXRay::Scintillator:

Public Member Functions
	Scintillator ()
	Default constructor. More...

	~Scintillator ()
	Destructor. More...

void	release ()
	Release the data. More...

void	setMaterial (const std::string &aMaterial)

void	setThickness (const RATIONAL_NUMBER &aThickness)

const std::string &	getMaterial () const

RATIONAL_NUMBER	getThickness ()

std::vector< std::pair< RATIONAL_NUMBER, RATIONAL_NUMBER > >	getEnergyResponse () const

void	loadEnergyResponse (const std::string &aFileName, const RATIONAL_NUMBER &aUnitOfEnergy)
	Load the energy response of the detector from a TSV file. More...

void	setEnergyResponse (const std::vector< std::pair< float, float > > &anEnergyResponse)

void	setEnergyResponse (const std::vector< std::pair< double, double > > &anEnergyResponse)

RATIONAL_NUMBER	applyEnergyResponse (const RATIONAL_NUMBER &anEnergy) const
	Apply the energy response if any. More...

Static Public Member Functions
static std::vector< std::string >	getSupportedScintillatorMaterials ()
	Accessor on the list of scintillator materials currently supported. More...

static std::vector< std::pair< RATIONAL_NUMBER, RATIONAL_NUMBER > >	getEnergyResponse (const std::string &aMaterial, const RATIONAL_NUMBER &aThickness)

static RATIONAL_NUMBER	getDensity (const std::string &aMaterial)

static std::string	getCompound (const std::string &aMaterial)

Protected Member Functions
int	findNearestEnergyIdx (const RATIONAL_NUMBER &anEnergy) const
	Find the index of the closest input energy in the energy response. More...

Protected Attributes
std::string	m_material

RATIONAL_NUMBER	m_density

RATIONAL_NUMBER	m_thickness

std::vector< std::pair< RATIONAL_NUMBER, RATIONAL_NUMBER > >	m_p_energy_response
	Energy response. The keys of the map are the input energies. More...

Detailed Description

Scintillator is a class to generate the energy response due to the scintillator of the X-Ray detector.

Definition at line 101 of file Scintillator.h.

Constructor & Destructor Documentation

◆ Scintillator()

gVirtualXRay::Scintillator::Scintillator ( )

inline

Default constructor.

Definition at line 113 of file Scintillator.inl.

◆ ~Scintillator()

gVirtualXRay::Scintillator::~Scintillator ( )

inline

Destructor.

Definition at line 122 of file Scintillator.inl.

Member Function Documentation

◆ applyEnergyResponse()

RATIONAL_NUMBER gVirtualXRay::Scintillator::applyEnergyResponse ( const RATIONAL_NUMBER & anEnergy ) const

inline

Apply the energy response if any.

Parameters

anEnergy the input energy

Returns: the output energy

Definition at line 476 of file Scintillator.inl.

◆ findNearestEnergyIdx()

int gVirtualXRay::Scintillator::findNearestEnergyIdx ( const RATIONAL_NUMBER & anEnergy ) const

inlineprotected

Find the index of the closest input energy in the energy response.

Returns: the index of the closest input energy

Definition at line 504 of file Scintillator.inl.

◆ getCompound()

std::string gVirtualXRay::Scintillator::getCompound ( const std::string & aMaterial )

inlinestatic

Definition at line 340 of file Scintillator.inl.

◆ getDensity()

RATIONAL_NUMBER gVirtualXRay::Scintillator::getDensity ( const std::string & aMaterial )

inlinestatic

Definition at line 273 of file Scintillator.inl.

◆ getEnergyResponse() [1/2]

std::vector< std::pair< RATIONAL_NUMBER, RATIONAL_NUMBER > > gVirtualXRay::Scintillator::getEnergyResponse ( ) const

inline

Definition at line 206 of file Scintillator.inl.

◆ getEnergyResponse() [2/2]

std::vector< std::pair< RATIONAL_NUMBER, RATIONAL_NUMBER > > gVirtualXRay::Scintillator::getEnergyResponse	(	const std::string &	aMaterial,
		const RATIONAL_NUMBER &	aThickness
	)

inlinestatic

Definition at line 214 of file Scintillator.inl.

◆ getMaterial()

const std::string & gVirtualXRay::Scintillator::getMaterial ( ) const

inline

Definition at line 191 of file Scintillator.inl.

◆ getSupportedScintillatorMaterials()

std::vector< std::string > gVirtualXRay::Scintillator::getSupportedScintillatorMaterials ( )

inlinestatic

Accessor on the list of scintillator materials currently supported.

Returns: the list of supported scintillator materials

Definition at line 155 of file Scintillator.inl.

◆ getThickness()

RATIONAL_NUMBER gVirtualXRay::Scintillator::getThickness ( )

inline

Definition at line 198 of file Scintillator.inl.

◆ loadEnergyResponse()

void gVirtualXRay::Scintillator::loadEnergyResponse	(	const std::string &	aFileName,
		const RATIONAL_NUMBER &	aUnitOfEnergy
	)

inline

Load the energy response of the detector from a TSV file.

Parameters

aFileName	name of the file. Each line of the file is formatted as follows: input_energy output_energy
aUnitOfEnergy	the unit of energy corresponding to the data in the file

Definition at line 407 of file Scintillator.inl.

◆ release()

void gVirtualXRay::Scintillator::release ( )

inline

Release the data.

Definition at line 130 of file Scintillator.inl.

◆ setEnergyResponse() [1/2]

void gVirtualXRay::Scintillator::setEnergyResponse ( const std::vector< std::pair< float, float > > & anEnergyResponse )

inline

Definition at line 444 of file Scintillator.inl.

◆ setEnergyResponse() [2/2]

void gVirtualXRay::Scintillator::setEnergyResponse ( const std::vector< std::pair< double, double > > & anEnergyResponse )

inline

Definition at line 460 of file Scintillator.inl.

◆ setMaterial()

void gVirtualXRay::Scintillator::setMaterial ( const std::string & aMaterial )

inline

Definition at line 141 of file Scintillator.inl.

◆ setThickness()

void gVirtualXRay::Scintillator::setThickness ( const RATIONAL_NUMBER & aThickness )

inline

Definition at line 178 of file Scintillator.inl.

Field Documentation

◆ m_density

RATIONAL_NUMBER gVirtualXRay::Scintillator::m_density

protected

Definition at line 198 of file Scintillator.h.

◆ m_material

std::string gVirtualXRay::Scintillator::m_material

protected

Definition at line 197 of file Scintillator.h.

◆ m_p_energy_response

std::vector<std::pair<RATIONAL_NUMBER, RATIONAL_NUMBER> > gVirtualXRay::Scintillator::m_p_energy_response

protected

Energy response. The keys of the map are the input energies.

Definition at line 203 of file Scintillator.h.

◆ m_thickness

RATIONAL_NUMBER gVirtualXRay::Scintillator::m_thickness

protected

Definition at line 200 of file Scintillator.h.

The documentation for this class was generated from the following files:

/home/fpvidal/PROGRAMMING/RELEASE/gVirtualXray-2.0.10-Source/gvxr/include/gVirtualXRay/Scintillator.h
/home/fpvidal/PROGRAMMING/RELEASE/gVirtualXray-2.0.10-Source/gvxr/include/gVirtualXRay/Scintillator.inl
