Shader is a class to handle shaders written in GLSL. More...

#include <Shader.h>

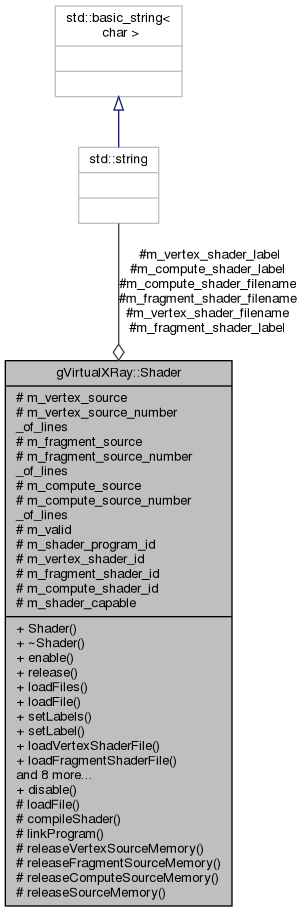

Collaboration diagram for gVirtualXRay::Shader:

Public Member Functions
	Shader ()
	Default constructor. More...

	~Shader ()
	Destructor. More...

void	enable () const
	Enable the current shader. More...

void	release ()

void	loadFiles (const std::string &aVertexShaderFilename, const std::string &aFragmentShaderFilename)
	Load the vertex and fragment shaders from files. More...

void	loadFile (const std::string &aComputeShaderFilename)
	Load the compute shader from a file. More...

void	setLabels (const std::string &aVertexShaderLabel, const std::string &aFragmentShaderLabel)
	Set the vertex and fragment shader labels. This is useful for debugging. More...

void	setLabel (const std::string &aComputeShaderLabel)
	Set the compute shader label. This is useful for debugging. More...

void	loadVertexShaderFile (const std::string &aVertexShaderFilename)
	Load the vertex shader from a file. More...

void	loadFragmentShaderFile (const std::string &aFragmentShaderFilename)
	Load the fragment shader from a file. More...

void	loadComputeShaderFile (const std::string &aComputeShaderFilename)
	Load the compute shader from a file. More...

void	loadSource (const std::string &aVertexShaderSourceCode, const std::string &aFragmentShaderSourceCode)
	Load the shader source code. More...

void	loadSource (const std::string &aComputeShaderSourceCode)
	Load the shader source code. More...

void	loadVertexShaderSource (const std::string &aVertexShaderSourceCode)
	Load the vertex shader from a string. More...

void	loadFragmentShaderSource (const std::string &aFragmentShaderSourceCode)
	Load the fragment shader from a string. More...

void	loadComputeShaderSource (const std::string &aComputeShaderSourceCode)
	Load the compute shader from a string. More...

unsigned int	getProgramHandle () const
	Accessor on the shader program handle. More...

bool	isValid () const
	Accessor on the validity status of the shader. More...

Static Public Member Functions
static void	disable ()
	Disable the current shader (if any) More...

Protected Member Functions
int	loadFile (const std::string &aShaderFilename, char **&aShaderSource)
	Load a text file and store its content. More...

unsigned int	compileShader (int aShaderType, int aLineNumber, char **aShaderSource)
	Compile the vertex shader or the fragment shader. More...

void	linkProgram ()
	Link the vertex and fragment programs. More...

void	releaseVertexSourceMemory ()
	Release the memory held by the vertex shader. More...

void	releaseFragmentSourceMemory ()
	Release the memory held by the fragment shader. More...

void	releaseComputeSourceMemory ()
	Release the memory held by the compute shader. More...

void	releaseSourceMemory (int &aLineNumber, char **&aShaderSource)
	Release the memory held by the vertex shader or the fragment shader. More...

Protected Attributes
std::string	m_vertex_shader_label
	Label of the vertex shader. More...

std::string	m_fragment_shader_label
	Label of the fragment shader. More...

std::string	m_compute_shader_label
	Label of the compute shader. More...

std::string	m_vertex_shader_filename
	Name of the file containing the vertex shader. More...

std::string	m_fragment_shader_filename
	Name of the file containing the fragment shader. More...

std::string	m_compute_shader_filename
	Name of the file containing the compute shader. More...

char **	m_vertex_source
	Source code of the vertex shader. More...

int	m_vertex_source_number_of_lines
	Number of line of the vertex shader. More...

char **	m_fragment_source
	Source code of the fragment shader. More...

int	m_fragment_source_number_of_lines
	Number of line of the fragment shader. More...

char **	m_compute_source
	Source code of the vertex shader. More...

int	m_compute_source_number_of_lines
	Number of line of the vertex shader. More...

bool	m_valid

unsigned int	m_shader_program_id
	ID of the shader program. More...

unsigned int	m_vertex_shader_id
	ID of the vertex shader. More...

unsigned int	m_fragment_shader_id
	ID of the fragment shader. More...

unsigned int	m_compute_shader_id
	ID of the compute shader. More...

Static Protected Attributes
static bool	m_shader_capable
	Flag set to true when a shader if fully valid. More...

Detailed Description

Shader is a class to handle shaders written in GLSL.

Definition at line 87 of file Shader.h.

Constructor & Destructor Documentation

◆ Shader()

gVirtualXRay::Shader::Shader ( )

Default constructor.

◆ ~Shader()

gVirtualXRay::Shader::~Shader ( )

Destructor.

Member Function Documentation

◆ compileShader()

unsigned int gVirtualXRay::Shader::compileShader	(	int	aShaderType,
		int	aLineNumber,
		char **	aShaderSource
	)

protected

Compile the vertex shader or the fragment shader.

Parameters

aShaderType	type of shader (GL_VERTEX_SHADER, GL_FRAGMENT_SHADER or GL_COMPUTE_SHADER)
aLineNumber	the number of lines of the source code
aShaderSource	source code of the vertex or fragment shader

Returns: the corresponding ID

◆ disable()

static void gVirtualXRay::Shader::disable ( )

static

Disable the current shader (if any)

◆ enable()

void gVirtualXRay::Shader::enable ( ) const

Enable the current shader.

◆ getProgramHandle()

unsigned int gVirtualXRay::Shader::getProgramHandle ( ) const

inline

Accessor on the shader program handle.

Returns: the shader program handle

Definition at line 87 of file Shader.inl.

◆ isValid()

bool gVirtualXRay::Shader::isValid ( ) const

inline

Accessor on the validity status of the shader.

Returns: true if the shader is valid, false if it is not

Definition at line 95 of file Shader.inl.

◆ linkProgram()

void gVirtualXRay::Shader::linkProgram ( )

protected

Link the vertex and fragment programs.

◆ loadComputeShaderFile()

void gVirtualXRay::Shader::loadComputeShaderFile ( const std::string & aComputeShaderFilename )

Load the compute shader from a file.

Parameters

aComputeShaderFilename file name of the compute shader

◆ loadComputeShaderSource()

void gVirtualXRay::Shader::loadComputeShaderSource ( const std::string & aComputeShaderSourceCode )

Load the compute shader from a string.

Parameters

aComputeShaderSourceCode the compute shader source code

◆ loadFile() [1/2]

void gVirtualXRay::Shader::loadFile ( const std::string & aComputeShaderFilename )

Load the compute shader from a file.

Parameters

aComputeShaderFilename file name of the compute shader

◆ loadFile() [2/2]

int gVirtualXRay::Shader::loadFile	(	const std::string &	aShaderFilename,
		char **&	aShaderSource
	)

protected

Load a text file and store its content.

Parameters

aShaderFilename	file name of the vertex or fragment shader
aShaderSource	source code of the vertex or fragment shader

Returns: the number of lines in the file

◆ loadFiles()

void gVirtualXRay::Shader::loadFiles	(	const std::string &	aVertexShaderFilename,
		const std::string &	aFragmentShaderFilename
	)

Load the vertex and fragment shaders from files.

Parameters

aVertexShaderFilename	file name of the vertex shader
aFragmentShaderFilename	file name of the fragment shader

◆ loadFragmentShaderFile()

void gVirtualXRay::Shader::loadFragmentShaderFile ( const std::string & aFragmentShaderFilename )

Load the fragment shader from a file.

Parameters

aFragmentShaderFilename file name of the fragment shader

◆ loadFragmentShaderSource()

void gVirtualXRay::Shader::loadFragmentShaderSource ( const std::string & aFragmentShaderSourceCode )

Load the fragment shader from a string.

Parameters

aFragmentShaderSourceCode the fragment shader source code

◆ loadSource() [1/2]

void gVirtualXRay::Shader::loadSource	(	const std::string &	aVertexShaderSourceCode,
		const std::string &	aFragmentShaderSourceCode
	)

Load the shader source code.

Parameters

aVertexShaderSourceCode	source code of the vertex shader
aFragmentShaderSourceCode	source code of the fragment shader

◆ loadSource() [2/2]

void gVirtualXRay::Shader::loadSource ( const std::string & aComputeShaderSourceCode )

Load the shader source code.

Parameters

aComputeShaderSourceCode source code of the compute shader

◆ loadVertexShaderFile()

void gVirtualXRay::Shader::loadVertexShaderFile ( const std::string & aVertexShaderFilename )

Load the vertex shader from a file.

Parameters

aVertexShaderFilename file name of the vertex shader

◆ loadVertexShaderSource()

void gVirtualXRay::Shader::loadVertexShaderSource ( const std::string & aVertexShaderSourceCode )

Load the vertex shader from a string.

Parameters

aVertexShaderSourceCode the vertex shader source code

◆ release()

void gVirtualXRay::Shader::release ( )

Reset (delete the current shader if it is loaded, and restore default values).

◆ releaseComputeSourceMemory()

void gVirtualXRay::Shader::releaseComputeSourceMemory ( )

inlineprotected

Release the memory held by the compute shader.

Definition at line 119 of file Shader.inl.

◆ releaseFragmentSourceMemory()

void gVirtualXRay::Shader::releaseFragmentSourceMemory ( )

inlineprotected

Release the memory held by the fragment shader.

Definition at line 111 of file Shader.inl.

◆ releaseSourceMemory()

void gVirtualXRay::Shader::releaseSourceMemory	(	int &	aLineNumber,
		char **&	aShaderSource
	)

protected

Release the memory held by the vertex shader or the fragment shader.

Parameters

aLineNumber	the number of lines of the source code
aShaderSource	source code of the vertex or fragment shader

◆ releaseVertexSourceMemory()

void gVirtualXRay::Shader::releaseVertexSourceMemory ( )

inlineprotected

Release the memory held by the vertex shader.

Definition at line 103 of file Shader.inl.

◆ setLabel()

void gVirtualXRay::Shader::setLabel ( const std::string & aComputeShaderLabel )

inline

Set the compute shader label. This is useful for debugging.

Parameters

aComputeShaderLabel label of the compute shader

Definition at line 79 of file Shader.inl.

◆ setLabels()

void gVirtualXRay::Shader::setLabels	(	const std::string &	aVertexShaderLabel,
		const std::string &	aFragmentShaderLabel
	)

inline

Set the vertex and fragment shader labels. This is useful for debugging.

Parameters

aVertexShaderLabel	label of the vertex shader
aFragmentShaderLabel	label of the fragment shader

Definition at line 69 of file Shader.inl.

Field Documentation

◆ m_compute_shader_filename

std::string gVirtualXRay::Shader::m_compute_shader_filename

protected

Name of the file containing the compute shader.

Definition at line 342 of file Shader.h.

◆ m_compute_shader_id

unsigned int gVirtualXRay::Shader::m_compute_shader_id

protected

ID of the compute shader.

Definition at line 388 of file Shader.h.

◆ m_compute_shader_label

std::string gVirtualXRay::Shader::m_compute_shader_label

protected

Label of the compute shader.

Definition at line 330 of file Shader.h.

◆ m_compute_source

char** gVirtualXRay::Shader::m_compute_source

protected

Source code of the vertex shader.

Definition at line 362 of file Shader.h.

◆ m_compute_source_number_of_lines

int gVirtualXRay::Shader::m_compute_source_number_of_lines

protected

Number of line of the vertex shader.

Definition at line 366 of file Shader.h.

◆ m_fragment_shader_filename

std::string gVirtualXRay::Shader::m_fragment_shader_filename

protected

Name of the file containing the fragment shader.

Definition at line 338 of file Shader.h.

◆ m_fragment_shader_id

unsigned int gVirtualXRay::Shader::m_fragment_shader_id

protected

ID of the fragment shader.

Definition at line 384 of file Shader.h.

◆ m_fragment_shader_label

std::string gVirtualXRay::Shader::m_fragment_shader_label

protected

Label of the fragment shader.

Definition at line 326 of file Shader.h.

◆ m_fragment_source

char** gVirtualXRay::Shader::m_fragment_source

protected

Source code of the fragment shader.

Definition at line 354 of file Shader.h.

◆ m_fragment_source_number_of_lines

int gVirtualXRay::Shader::m_fragment_source_number_of_lines

protected

Number of line of the fragment shader.

Definition at line 358 of file Shader.h.

◆ m_shader_capable

bool gVirtualXRay::Shader::m_shader_capable

staticprotected

Flag set to true when a shader if fully valid.

Definition at line 318 of file Shader.h.

◆ m_shader_program_id

unsigned int gVirtualXRay::Shader::m_shader_program_id

protected

ID of the shader program.

Definition at line 376 of file Shader.h.

◆ m_valid

bool gVirtualXRay::Shader::m_valid

protected

Flag set to true if the vertex shader, the fragment shader and the shader program are all valid

Definition at line 372 of file Shader.h.

◆ m_vertex_shader_filename

std::string gVirtualXRay::Shader::m_vertex_shader_filename

protected

Name of the file containing the vertex shader.

Definition at line 334 of file Shader.h.

◆ m_vertex_shader_id

unsigned int gVirtualXRay::Shader::m_vertex_shader_id

protected

ID of the vertex shader.

Definition at line 380 of file Shader.h.

◆ m_vertex_shader_label

std::string gVirtualXRay::Shader::m_vertex_shader_label

protected

Label of the vertex shader.

Definition at line 322 of file Shader.h.

◆ m_vertex_source

char** gVirtualXRay::Shader::m_vertex_source

protected

Source code of the vertex shader.

Definition at line 346 of file Shader.h.

◆ m_vertex_source_number_of_lines

int gVirtualXRay::Shader::m_vertex_source_number_of_lines

protected

Number of line of the vertex shader.

Definition at line 350 of file Shader.h.

The documentation for this class was generated from the following files:

/home/fpvidal/PROGRAMMING/RELEASE/gVirtualXray-2.0.10-Source/gvxr/include/gVirtualXRay/Shader.h
/home/fpvidal/PROGRAMMING/RELEASE/gVirtualXray-2.0.10-Source/gvxr/include/gVirtualXRay/Shader.inl

Public Member Functions

Static Public Member Functions

Protected Member Functions

Protected Attributes

Static Protected Attributes

Detailed Description

Constructor & Destructor Documentation

◆ Shader()

◆ ~Shader()

Member Function Documentation

◆ compileShader()

◆ disable()

◆ enable()

◆ getProgramHandle()

◆ isValid()

◆ linkProgram()

◆ loadComputeShaderFile()

◆ loadComputeShaderSource()

◆ loadFile() [1/2]

◆ loadFile() [2/2]

◆ loadFiles()

◆ loadFragmentShaderFile()

◆ loadFragmentShaderSource()

◆ loadSource() [1/2]

◆ loadSource() [2/2]

◆ loadVertexShaderFile()

◆ loadVertexShaderSource()

◆ release()

◆ releaseComputeSourceMemory()

◆ releaseFragmentSourceMemory()

◆ releaseSourceMemory()

◆ releaseVertexSourceMemory()

◆ setLabel()

◆ setLabels()

Field Documentation

◆ m_compute_shader_filename

◆ m_compute_shader_id

◆ m_compute_shader_label

◆ m_compute_source

◆ m_compute_source_number_of_lines

◆ m_fragment_shader_filename

◆ m_fragment_shader_id

◆ m_fragment_shader_label

◆ m_fragment_source

◆ m_fragment_source_number_of_lines

◆ m_shader_capable

◆ m_shader_program_id

◆ m_valid

◆ m_vertex_shader_filename

◆ m_vertex_shader_id

◆ m_vertex_shader_label

◆ m_vertex_source

◆ m_vertex_source_number_of_lines
