StereoHelper is a class to handle stereo vision using OpenGL's quad buffer. More...

#include <StereoHelper.h>

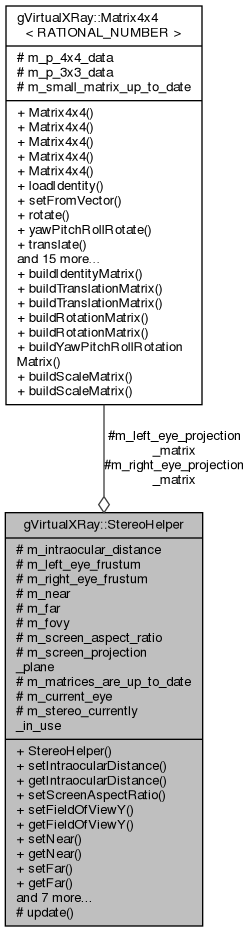

Collaboration diagram for gVirtualXRay::StereoHelper:

Public Types
enum	EyeType { LEFT_EYE = 0, RIGHT_EYE = 1, MONO = 2 }
	Enum defining eyes. More...

Public Member Functions
	StereoHelper ()
	Default constructor. More...

void	setIntraocularDistance (double aDistance)
	Set the intraocular distance. More...

double	getIntraocularDistance () const
	Accessor on the intraocular distance. More...

void	setScreenAspectRatio (double aRatio)
	Set the screen aspect ratio. More...

void	setFieldOfViewY (double aFOVY)
	Set the field of view along the y-axis. More...

double	getFieldOfViewY () const
	Accessor on the field of view along the y-axis. More...

void	setNear (double aPlane)
	Set the near clipping plane. More...

double	getNear () const
	Accessor on the near clipping plane. More...

void	setFar (double aPlane)
	Set the far clipping plane. More...

double	getFar () const
	Accessor on the far clipping plane. More...

void	setScreenProjectionPlane (double aPlane)
	Set the screen projection plane. More...

const MATRIX4 &	getLeftEyeProjectionMatrix ()
	Accessor on the projection matrix corresponding to the left eye. More...

const MATRIX4 &	getRightEyeProjectionMatrix ()
	Accessor on the projection matrix corresponding to the right eye. More...

void	swapEye ()
	Swap eye. More...

bool	enable ()
	Enable the stereo if possible. More...

void	disable ()
	Disable the stereo. More...

bool	isActive () const
	Accessor on the stereo flag. More...

Protected Member Functions
void	update ()
	Compute the projection matrices. More...

Protected Attributes
double	m_intraocular_distance
	Intraocular distance. More...

MATRIX4	m_left_eye_projection_matrix
	The projection matrix corresponding to the left eye. More...

MATRIX4	m_right_eye_projection_matrix
	The projection matrix corresponding to the right eye. More...

double	m_left_eye_frustum [4]

double	m_right_eye_frustum [4]

double	m_near
	Near clipping plane. More...

double	m_far
	Far clipping plane. More...

double	m_fovy
	Field of view along the y-axis. More...

double	m_screen_aspect_ratio
	Screen aspect ratio. More...

double	m_screen_projection_plane
	Screen projection plane. More...

bool	m_matrices_are_up_to_date
	Flag set to true when the matrices are up-to-date. More...

EyeType	m_current_eye
	Current eye type. More...

bool	m_stereo_currently_in_use
	Flag set to true when the stereo is in used. More...

Detailed Description

StereoHelper is a class to handle stereo vision using OpenGL's quad buffer.

Definition at line 97 of file StereoHelper.h.

Member Enumeration Documentation

◆ EyeType

enum gVirtualXRay::StereoHelper::EyeType

Enum defining eyes.

Enumerator
LEFT_EYE
RIGHT_EYE
MONO

Definition at line 105 of file StereoHelper.h.

Constructor & Destructor Documentation

◆ StereoHelper()

gVirtualXRay::StereoHelper::StereoHelper ( )

Default constructor.

Member Function Documentation

◆ disable()

void gVirtualXRay::StereoHelper::disable ( )

Disable the stereo.

◆ enable()

bool gVirtualXRay::StereoHelper::enable ( )

Enable the stereo if possible.

◆ getFar()

double gVirtualXRay::StereoHelper::getFar ( ) const

inline

Accessor on the far clipping plane.

Returns: the far clipping plane

Definition at line 139 of file StereoHelper.inl.

◆ getFieldOfViewY()

double gVirtualXRay::StereoHelper::getFieldOfViewY ( ) const

inline

Accessor on the field of view along the y-axis.

return the field of view along the y-axis

Definition at line 105 of file StereoHelper.inl.

◆ getIntraocularDistance()

double gVirtualXRay::StereoHelper::getIntraocularDistance ( ) const

inline

Accessor on the intraocular distance.

Returns: the intraocular distance

Definition at line 79 of file StereoHelper.inl.

◆ getLeftEyeProjectionMatrix()

const MATRIX4 & gVirtualXRay::StereoHelper::getLeftEyeProjectionMatrix ( )

inline

Accessor on the projection matrix corresponding to the left eye.

Returns: the projection matrix

Definition at line 156 of file StereoHelper.inl.

◆ getNear()

double gVirtualXRay::StereoHelper::getNear ( ) const

inline

Accessor on the near clipping plane.

Returns: the near clipping plane

Definition at line 122 of file StereoHelper.inl.

◆ getRightEyeProjectionMatrix()

const MATRIX4 & gVirtualXRay::StereoHelper::getRightEyeProjectionMatrix ( )

inline

Accessor on the projection matrix corresponding to the right eye.

Returns: the projection matrix

Definition at line 169 of file StereoHelper.inl.

◆ isActive()

bool gVirtualXRay::StereoHelper::isActive ( ) const

inline

Accessor on the stereo flag.

Definition at line 182 of file StereoHelper.inl.

◆ setFar()

void gVirtualXRay::StereoHelper::setFar ( double aPlane )

inline

Set the far clipping plane.

Parameters

aPlane the far clipping plane

Definition at line 130 of file StereoHelper.inl.

◆ setFieldOfViewY()

void gVirtualXRay::StereoHelper::setFieldOfViewY ( double aFOVY )

inline

Set the field of view along the y-axis.

Parameters

aFOVY the field of view along the y-axis

Definition at line 96 of file StereoHelper.inl.

◆ setIntraocularDistance()

void gVirtualXRay::StereoHelper::setIntraocularDistance ( double aDistance )

inline

Set the intraocular distance.

Parameters

aDistance the intraocular distance

Definition at line 70 of file StereoHelper.inl.

◆ setNear()

void gVirtualXRay::StereoHelper::setNear ( double aPlane )

inline

Set the near clipping plane.

Parameters

aPlane the near clipping plane

Definition at line 113 of file StereoHelper.inl.

◆ setScreenAspectRatio()

void gVirtualXRay::StereoHelper::setScreenAspectRatio ( double aRatio )

inline

Set the screen aspect ratio.

Parameters

aRatio the screen aspect ratio

Definition at line 87 of file StereoHelper.inl.

◆ setScreenProjectionPlane()

void gVirtualXRay::StereoHelper::setScreenProjectionPlane ( double aPlane )

inline

Set the screen projection plane.

Parameters

aPlane the screen projection plane

Definition at line 147 of file StereoHelper.inl.

◆ swapEye()

void gVirtualXRay::StereoHelper::swapEye ( )

Swap eye.

◆ update()

void gVirtualXRay::StereoHelper::update ( )

protected

Compute the projection matrices.

Field Documentation

◆ m_current_eye

EyeType gVirtualXRay::StereoHelper::m_current_eye

protected

Current eye type.

Definition at line 310 of file StereoHelper.h.

◆ m_far

double gVirtualXRay::StereoHelper::m_far

protected

Far clipping plane.

Definition at line 290 of file StereoHelper.h.

◆ m_fovy

double gVirtualXRay::StereoHelper::m_fovy

protected

Field of view along the y-axis.

Definition at line 294 of file StereoHelper.h.

◆ m_intraocular_distance

double gVirtualXRay::StereoHelper::m_intraocular_distance

protected

Intraocular distance.

Definition at line 258 of file StereoHelper.h.

◆ m_left_eye_frustum

double gVirtualXRay::StereoHelper::m_left_eye_frustum[4]

protected

Frustum of the left eye m_left_eye_frustum[0] corresponds to the left clipping plane m_left_eye_frustum[1] corresponds to the right clipping plane m_left_eye_frustum[2] corresponds to the bottom clipping plane m_left_eye_frustum[3] corresponds to the top clipping plane

Definition at line 274 of file StereoHelper.h.

◆ m_left_eye_projection_matrix

MATRIX4 gVirtualXRay::StereoHelper::m_left_eye_projection_matrix

protected

The projection matrix corresponding to the left eye.

Definition at line 262 of file StereoHelper.h.

◆ m_matrices_are_up_to_date

bool gVirtualXRay::StereoHelper::m_matrices_are_up_to_date

protected

Flag set to true when the matrices are up-to-date.

Definition at line 306 of file StereoHelper.h.

◆ m_near

double gVirtualXRay::StereoHelper::m_near

protected

Near clipping plane.

Definition at line 286 of file StereoHelper.h.

◆ m_right_eye_frustum

double gVirtualXRay::StereoHelper::m_right_eye_frustum[4]

protected

Frustum of the right eye m_right_eye_frustum[0] corresponds to the left clipping plane m_right_eye_frustum[1] corresponds to the right clipping plane m_right_eye_frustum[2] corresponds to the bottom clipping plane m_right_eye_frustum[3] corresponds to the top clipping plane

Definition at line 282 of file StereoHelper.h.

◆ m_right_eye_projection_matrix

MATRIX4 gVirtualXRay::StereoHelper::m_right_eye_projection_matrix

protected

The projection matrix corresponding to the right eye.

Definition at line 266 of file StereoHelper.h.

◆ m_screen_aspect_ratio

double gVirtualXRay::StereoHelper::m_screen_aspect_ratio

protected

Screen aspect ratio.

Definition at line 298 of file StereoHelper.h.

◆ m_screen_projection_plane

double gVirtualXRay::StereoHelper::m_screen_projection_plane

protected

Screen projection plane.

Definition at line 302 of file StereoHelper.h.

◆ m_stereo_currently_in_use

bool gVirtualXRay::StereoHelper::m_stereo_currently_in_use

protected

Flag set to true when the stereo is in used.

Definition at line 314 of file StereoHelper.h.

The documentation for this class was generated from the following files:

/home/fpvidal/PROGRAMMING/RELEASE/gVirtualXray-2.0.10-Source/gvxr/include/gVirtualXRay/StereoHelper.h
/home/fpvidal/PROGRAMMING/RELEASE/gVirtualXray-2.0.10-Source/gvxr/include/gVirtualXRay/StereoHelper.inl
